ARGENTA NEO M-6 3D Concealed Invisible Hinge

The Argenta Invisible NEO is a series of hinges with an exceptionally high and sublime finish: Not a single screw is visible. You can adjust these hinges with precision easily, flexibly, and quickly, thanks to the built-in height-adjustment system. This unique system means you no longer need to put any wedges under the door to set the height. The hinge casing is the door can be assembled beforehand in the workshop.

Pure and qualitative design
No visible screws
Universal: For Left and Right hand opening doors
"Easy-Hook": Installation and 3D adjustable by one person
Extra simplified height adjustment:
No wedge required
180 Degree opening angle
3D adjustable (height, width, and depth) without removing the door.

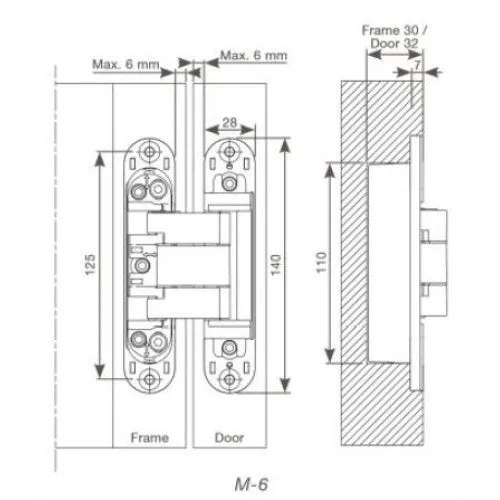

DIMENSIONS:
140mm Long x 28mm Wide
Door Thickness: min. 36 mm
Door Weight (2 pcs) : up to 80kg
Door Weight (3 pcs) : up to 100kg
Height Adjustment: -3,0 / 3,0 mm
Width Adjustment: -3,0 / 4,0 mm
Depth Adjustment: -1,5 / 1,5mm
Fire Resistant: EI30 3 hinges required
Screw Diameter: max. 5mm

There are two versions available for selection - Non-fire rated and fire rated to suit FD30 fire doors (with integrated intumescent kit where three hinges must be fitted) which can be selected via the drop down.

Please note that these are sold singly

FINISH:

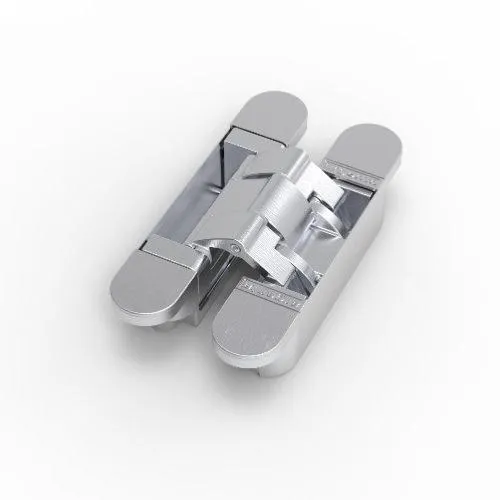

Matt Chrome

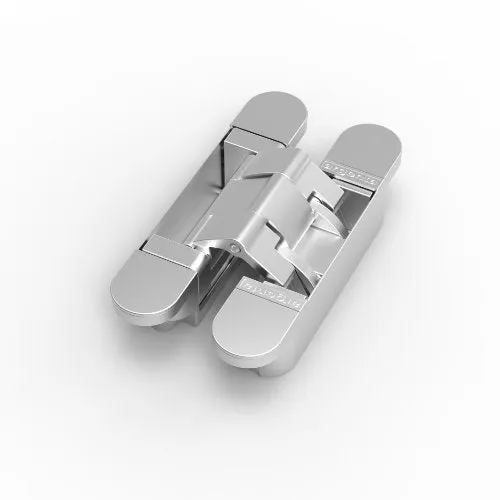

Polished Chrome
Satin Stainless Steel Look

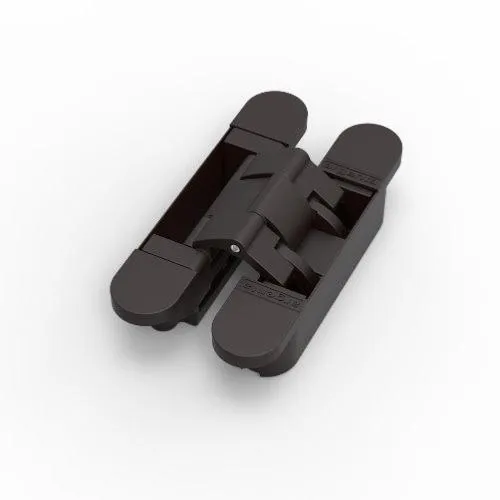

Black Umber

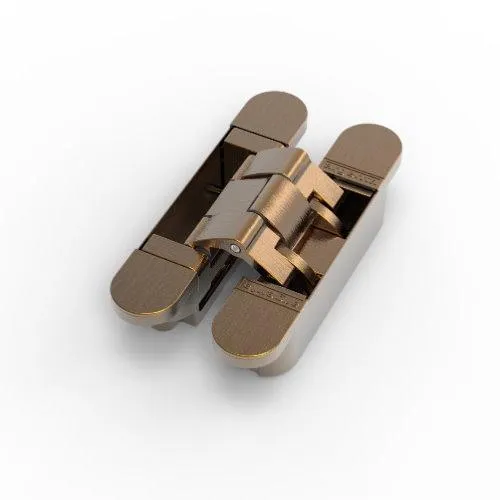

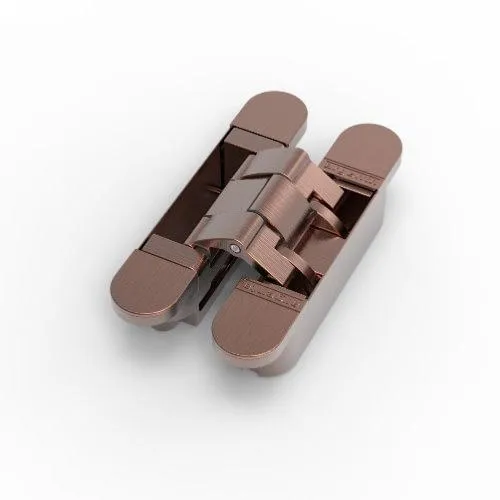

Copper Bronze

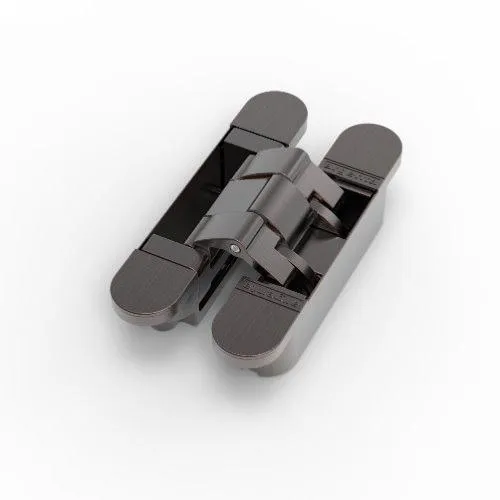

Dark Bronze

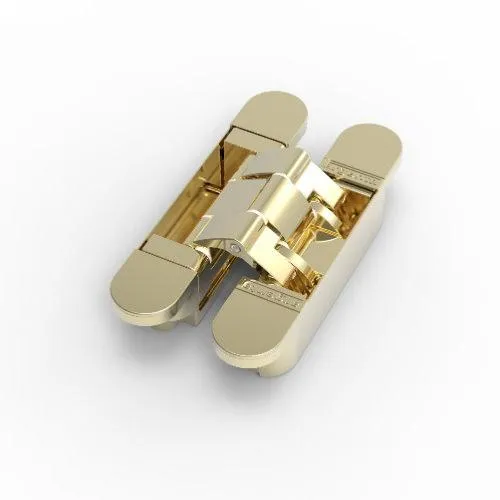

PVD Polished Brass
Antique Brass

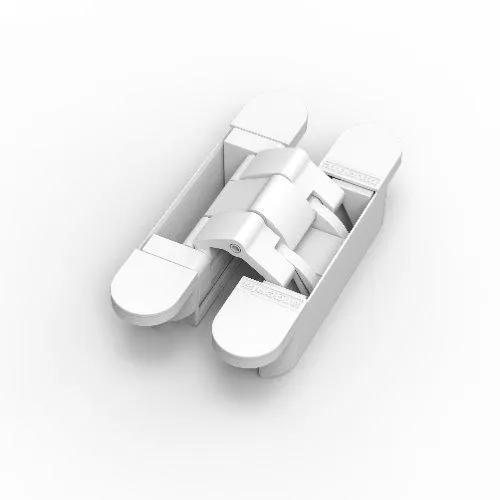

White
