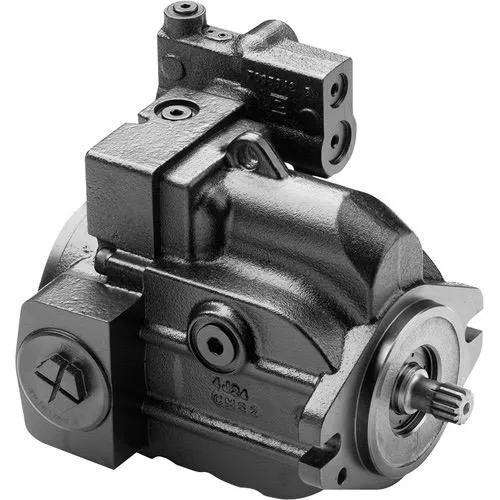

Low noise level thanks to cast-iron housing. SAE-B connection flange, drive shaft with 13-tooth spline. Pressure/suction connections on the side.

Specifications

Capacity: 30 cc (SD1) or 45 cc (SD2)

Rotation: Anti-clockwise viewed from end of shaft

Connection: SAE-B flange, 13 spline shaft Side connection for suction and pressure. Fits PRM gearboxes.

Maximum r.p.m.: 3.600 SD1. / 2.800 SD2

Approx Weight: 24kg (SD1) / 27kg (SD2)

Torque in Newton, Metres for each bar of operating pressure *: 0.48 (SD1) / 0.72(SD2)

Note:
* It may be necessary to reduce pump pressure to avoid exceeding the maximum allowed torque for the PTO, even if that means reduced power for the user device.
Non-standard pumps are made to order.
